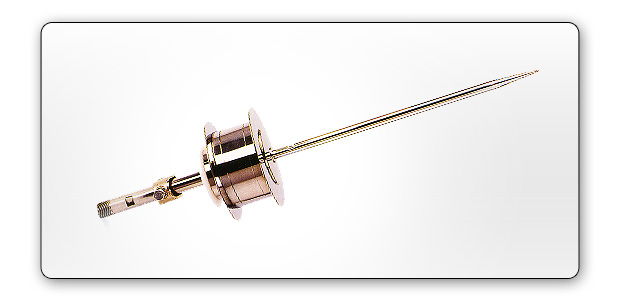

| Apollo lightning conductor series |

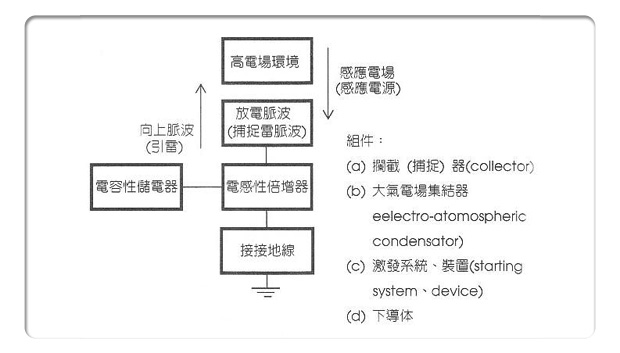

This product of operation theory has three parts:
(1) collector：
It is formed by triple protective system (electro-atmospheric condensator,
Starting device and earth leackage current), with double insulation appliance and
Spark way.
(2) Electroatmospheric condensator：
The Apollo is provided with an isolated external armature, at floating potential with
Regard to its earth-connected cental axle, forming a natual condensator in terms of Its surrounding electric field with two spark channels, one in controlled atmosphere and the Other in ambiental atmosphere.
(3) Starting system：
The Apollo is equipped with a high-voltage electrical pulses transformaotr-generator with alternating operation,
Depending on the surrounding electric field.
|
|
*According to NFC17-102
Install hight (unit meter) |
TA-1 |
TA-2 |
TA-3 |
TA-5 |
2 |
28 |
36 |
44 |
50 |
4 |
57 |
72 |
87 |
93 |
5 |
71 |
89 |
107 |
113 |
7 |
73 |
91 |
108 |
114 |
10 |
75 |
92 |
109 |
116 |
15 |
78 |
95 |
113 |
118 |
|
|
|
