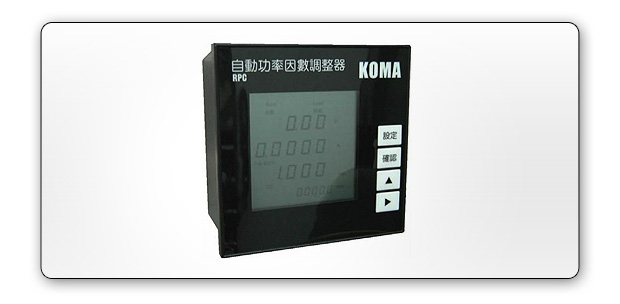

Automatic Power Factor Regulator
＊ Micro-processing of large size LCD display. (can display Traditional Chinese fonts).
＊ Isolated input and output (include PT、RS485、Relay).
＊ Voltage and current harmonics can be shown to 41th.
＊ Alarm recording function (including time records)
＊ Includes 4MB flash memory
＊ No external battery.
＊ RS – 485(MODBUS BUS - RTU)
|
|
| Display |
5-digit high contrast LCD display in Chinese |
| parameters |
Cos , V, A, KVA, KVAR, Hz, Temp, A-THD, V-THD |
| Output contacts |
7/ 12 |
| Capacitor start-up time |
0.1~2000秒 |
| Capacitance closing time |
0.1～2000秒 |
| Operation |
Manual and automatic |
| Protection |
10ms immediately after power failure tripping all the capacitors, multiple power after each input capacitor. |
| Isorated |
input：PT, CT
output：RS485, Relay。 |
| Capacitor Management |
Capacitor capacity to record the section, input the number of total transmission time, easy to monitor and maintain the use of capacitors and contactors security. |
| Sampling rate |
8192 point/ cycle |
| Communication |
RS485 |
| Auxiliary power |
220Vac (45~ 65Hz) |
| Power consumption |
5VA |
| Operating Temperature |
-10 ~ +70 degree. |
| Alarm |
Yes |
| Contact capacity |
275Vac ,12A |
| Dimension |
144 x 144 x 65mm |
| Panel dimension |
138 x 138 mm |
| IP rating |
IP20/ IP54/ IP66 |
| National standards |
ANSI C12.20
IEEE 37.90
ANSI C62.41
UL96
IEC 1000-4-5
IEC 255
IEC 687
EN61326 |
|
|
|
|
